Rapid Actuation

Powered by the ARM Cortex-M7 processor, SmartKite processes control output at 20-30Hz, giving smoother and more accurate mission execution.

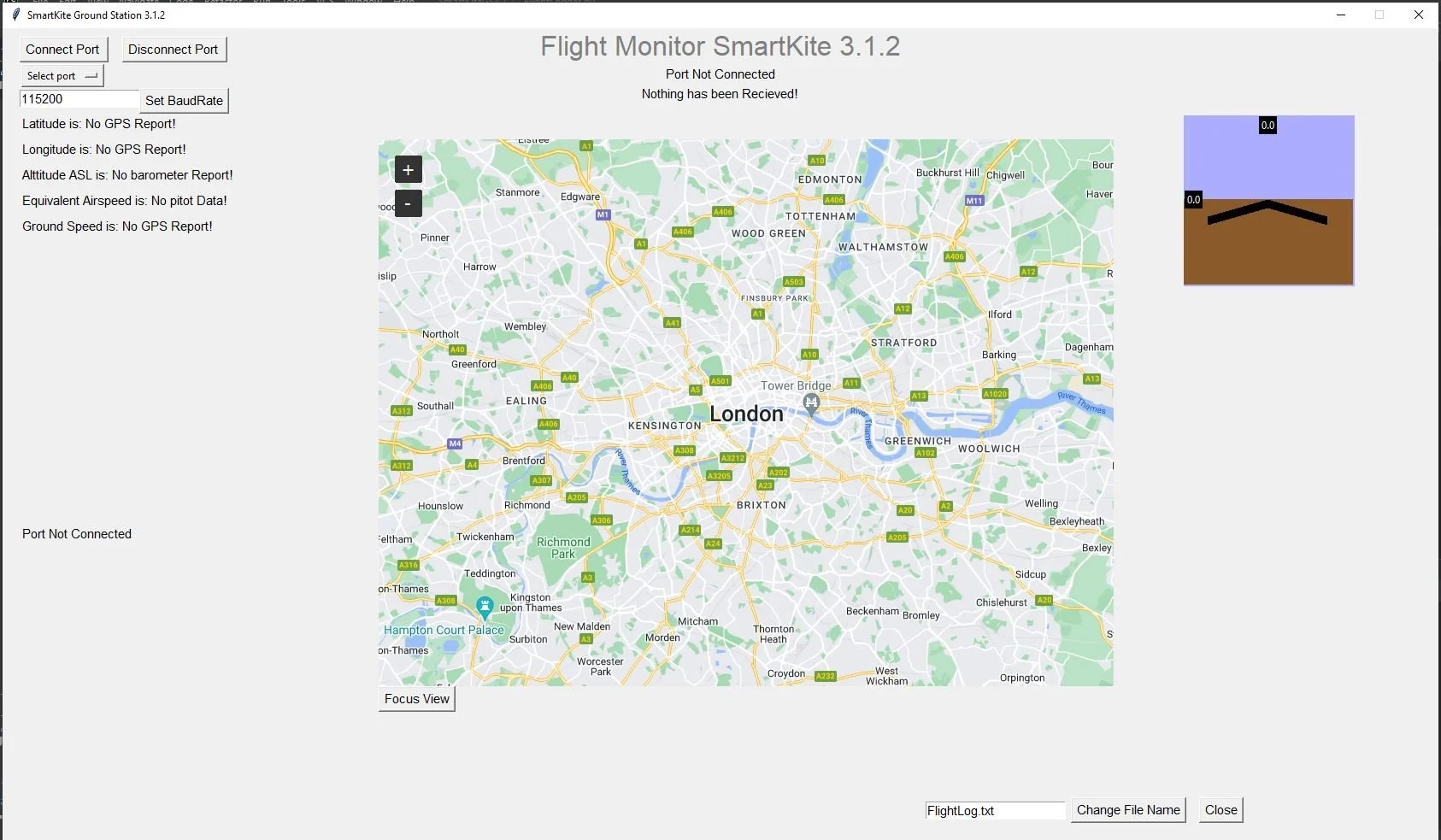

Smooth Monitoring

Fly your UAV from the ground-station with seamless avionics update. SmartKite ground-station plots your Artificial Horizon, Airspeed, Heading … on your HUD every 50miliseconds!

More Like an Autopilot

Using traditional Aerodynamic Models- input your own Airframe Parameters and Local Weather Conditions. Flight controller will correct for crosswind landings, avoid stalls and overshooting in turns and manoeuvres.

Safety First

SmartKite is programmed to reduce Risks of Accidents. Throttle Lock will keep your aircraft stationary whilst doing Mission Programming. Auto_Return will bring your aircraft back when Remote Control Signal is weak/lost. Want direct control? Manual Override is available at all times.

Endless Possibilities

SmartKite comes with 5 Expansion slots for extra actuation, and addition of optional sensors. From QuadCopters to Gliders to conventional aircraft configurations… tailor the kit to your needs.

Technical Specifications

• 50knots (27m/s) Airspeed Pitot Sensor Limit

• 6 Flight Control Actuation Channels

• Gyroscopic Precision +/- 0.05 Degrees

• Compass Precision +/- 0.5 Degrees

• 1000m Telemetry Range (Radius)

• NEO-6M GPS 10Hz update

• SBUS Receiver input (Remote Controller)

• Vertical Speed Control (Inertia Corrected Barometer +/- 0.12hPa)

• 4.8-5.5v Operating Voltage (Servos and ESCs)
